Euro Shade

Manual chain roller shade system

Key Features

Manual chain roller system

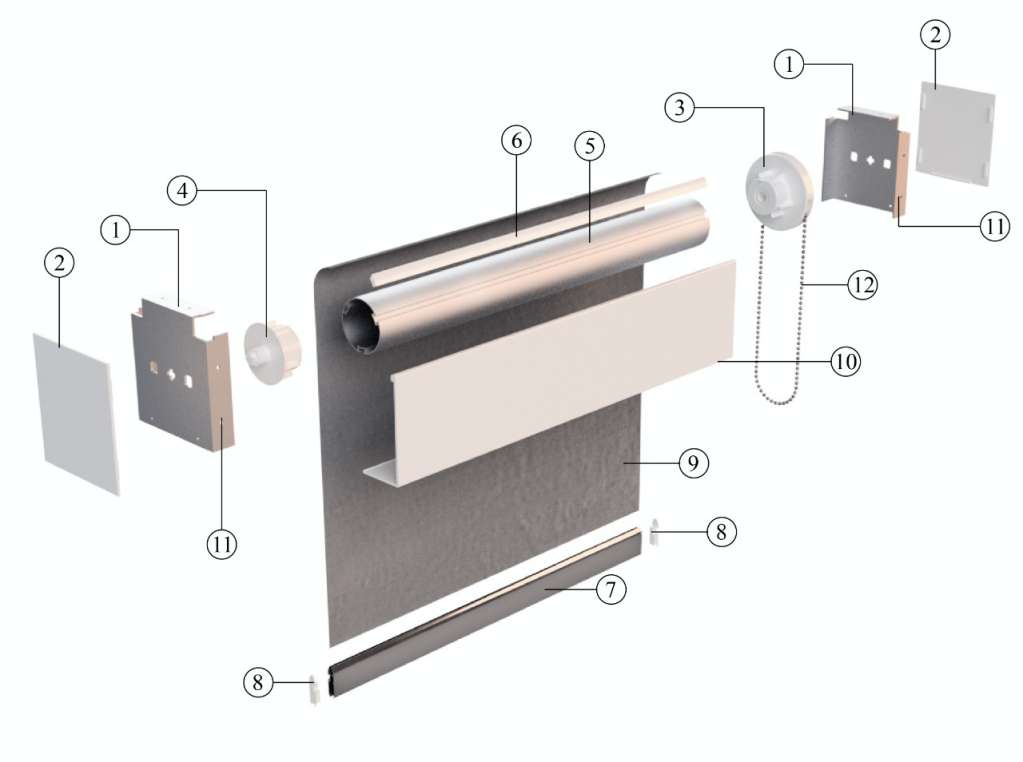

Our Salire® 45 roller blind system is manually operated with a chain. Its slide-lock combines heavier holding weights with antifray features that ensure enhanced blind performance. Its Improved chain location allows for quick and easy on-site adjustment while its locking plug inside clutch ensures continued performance of larger shades.
This roller system is engineered with a specific grooved 5mm aluminum tubing. The selected fabrics are held into the tube with locking tape. Made of glass filled nylon 6, the Salire® 45 side-control units include acetal sprockets, sprockets guard and locking springs. At the opposite end to the control unit, we place a sprung plunger mechanism. The brackets are made of mild steel, acetate, or aluminum to be used for top or face fixing.
Our Salire® 45 is designed with improved chain location for quick and easy on-site adjustment. The locking plug inside clutch ensures continued performance of larger shades.

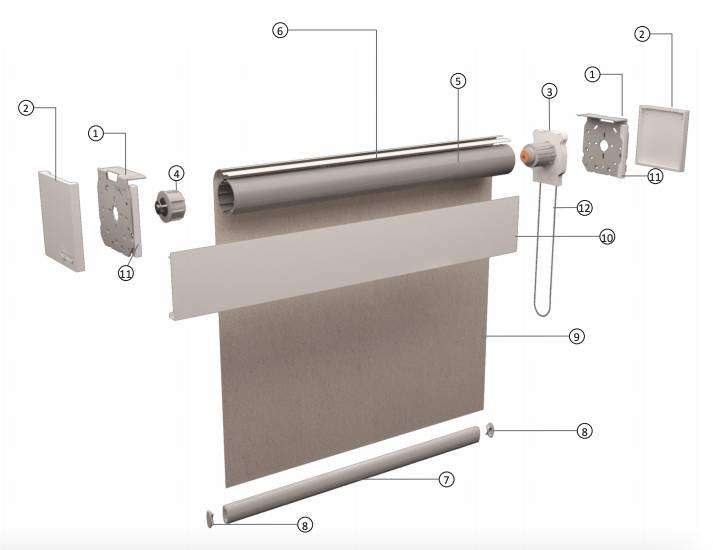

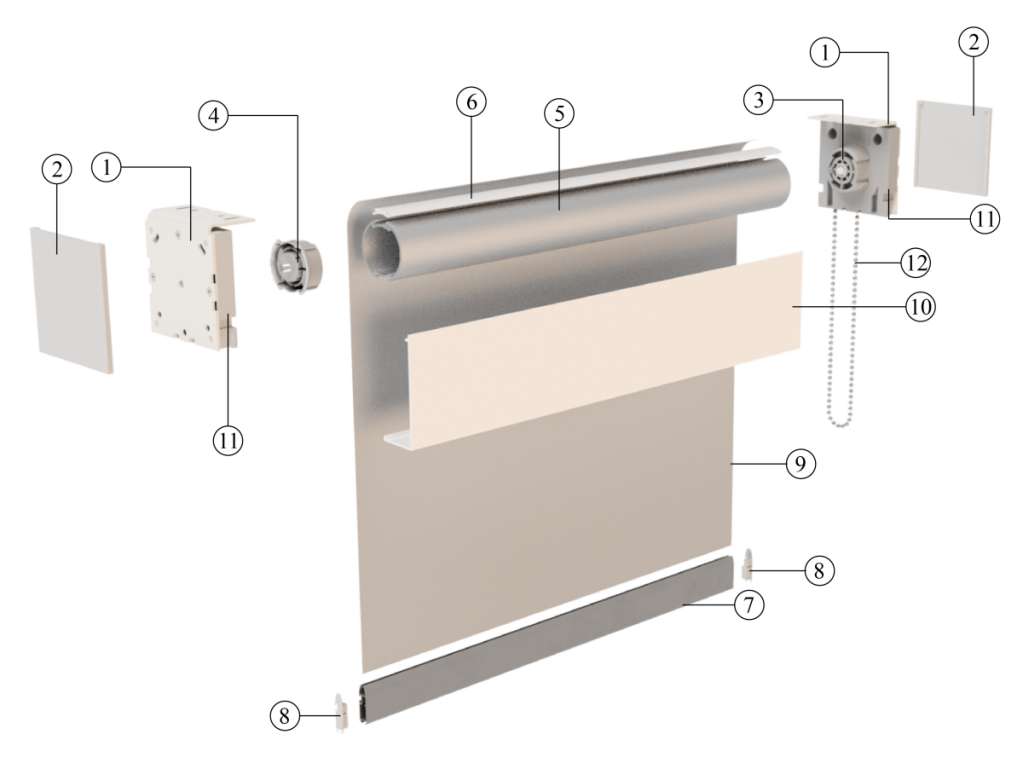

Manual chain roller system

4:1 ratio chain mechanism for easy operation on large shades
Built in auto stop mechanism for upper and lower limit setting
Robust anti-deflection 1.85 inch diameter tube
Aesthetic end caps
Aesthetic aluminum fascia available as option
Face, top or wall fixing options
Additional weightening by steel profile is possible (Only with exposed bottom bar)

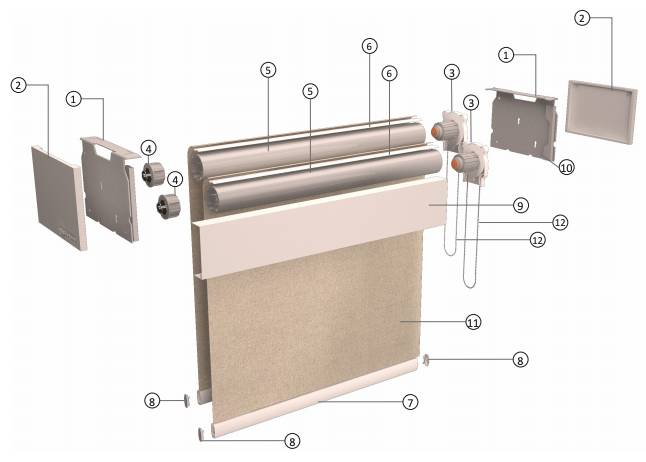

Double Shade roller system

4:1 ratio chain mechanism for easy operation on large shades
Double shade with single bracket system designed to install both sunscreen & blackout shades
Built in auto stop mechanism for upper and lower limit setting
Robust anti-deflection 1.85 inch diameter tube
Aesthetic end caps
Aesthetic aluminum fascia available as option
Face, top or wall fixing options
Additional weightening by steel profile is possible (Only with exposed bottom bar)
